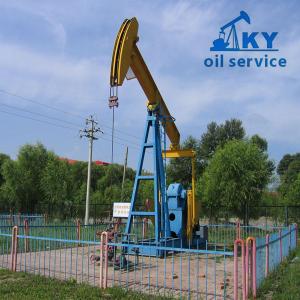

China made API conventional beam oil pumping unit

Name: China made API conventional beam oil pumping unit
Brand: Kangyu
Price: 1 USD

Place of Origin : China

Brand Name : Kangyu

Model Number : CYJ5-2.1-13HB

Certification : API

Price : 2000-20000 USD

Packaging Details : Standard export packing

Delivery Time : 30-90 days,according the quantity

Payment Terms : 30%T/T in advance as deposit, balance before shipment

Supply Ability : 10/month

MOQ : 1 set

Contact Now

Pumping unit specifications:.

Conventional beam pumping unit,with the characteristics of simple structure,high safety and good reliability, is applicable to continuous operation in field. The conventional beam pumping unit produced by our plant is designed and manufactured according to SY/T5044 pumping unit standard and API 11E pumping unit specification, and it has mature technology, reasonable structure and reliable use. According to different requirements of users, our plant can providedifferent types and specifications of pumping units for users.

Pumping unit technical parameters:

Parameters		CYJ5-2.1-13HB	CYJ6-2.5-26HB	CYJ8-3-37HB
Rated polished rodload		50 kN	60 kN	80 kN
Stroke(m)		2.1;1.8;1.4	2.5;2.1;1.7	3;2.5;2.1
Timesof strokes (min-1)		12;9;6	12;9;6	9;7;5
Rotating directionof crank		Faces to the pumping unit, the wellhead is arranged at right side, and anticlockwise rotated
Balance mode		Crank Balance
Gear box	Model	JLH-600	JLH-750	JLH-850
	Total drive ratio	33.58	31.71	28.27
	Rated torque (KN.M)	13	26	37
Motor	Model	Y180L-6	Y225S-8	YCY225M-8
	Power(kW)	15	18.5	22
	Speed (r/min)	980	730	730
Structural unbalanced weight(kN)		+0.15	0	+0.67
Total weight (Tons)		7.77	10.52	15.5
External dimension(m) (length * width * height)		6.351.545	7.551.806	8.1427.2

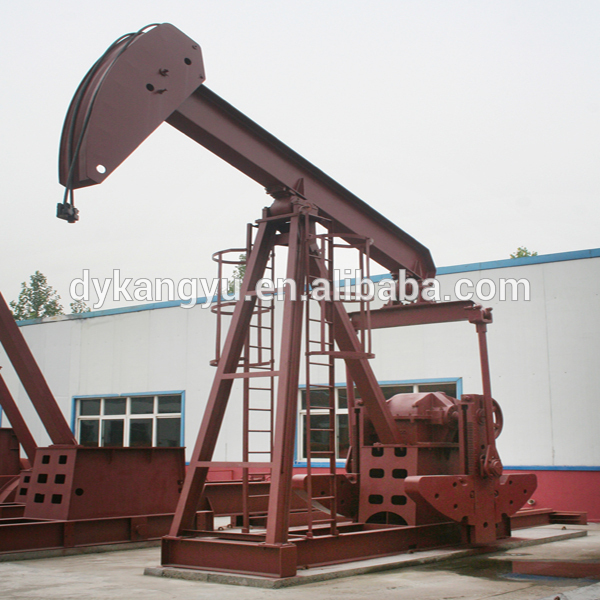

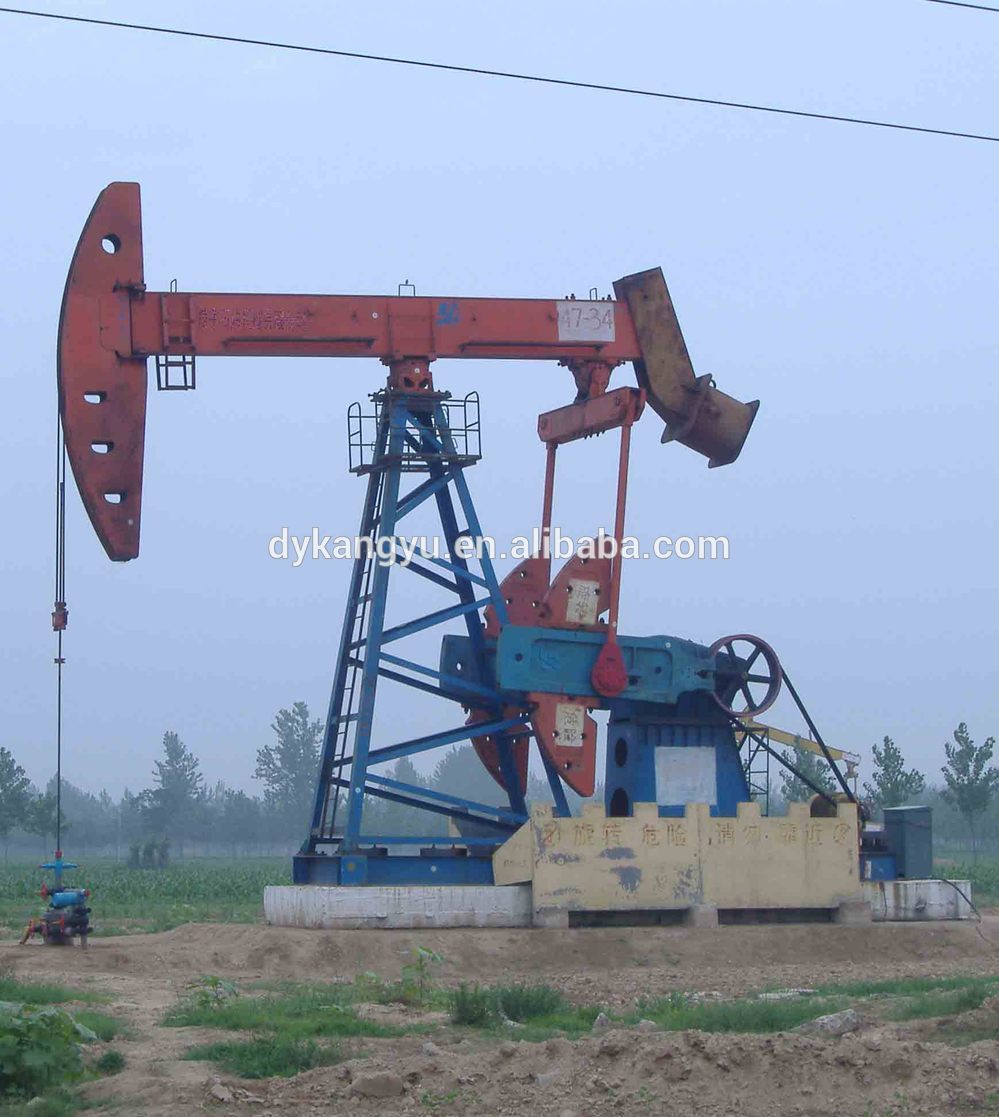

Pumping unit pictures:

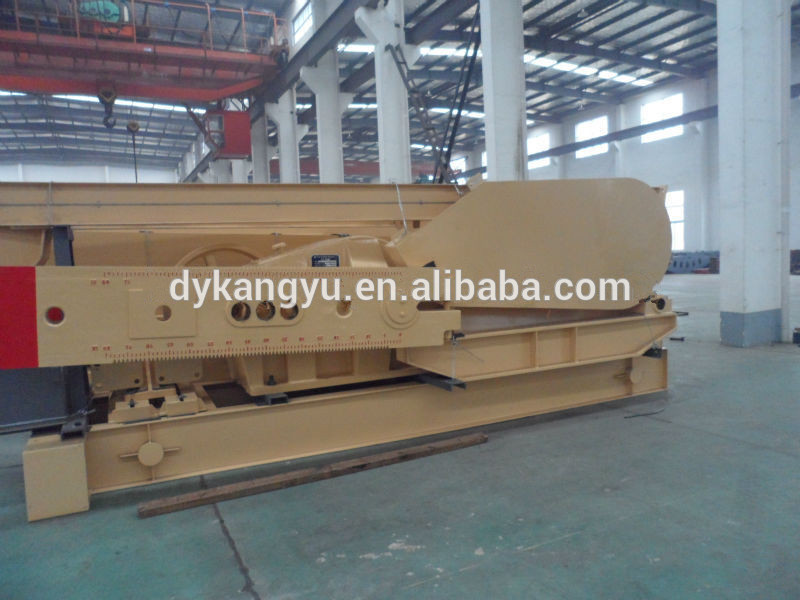

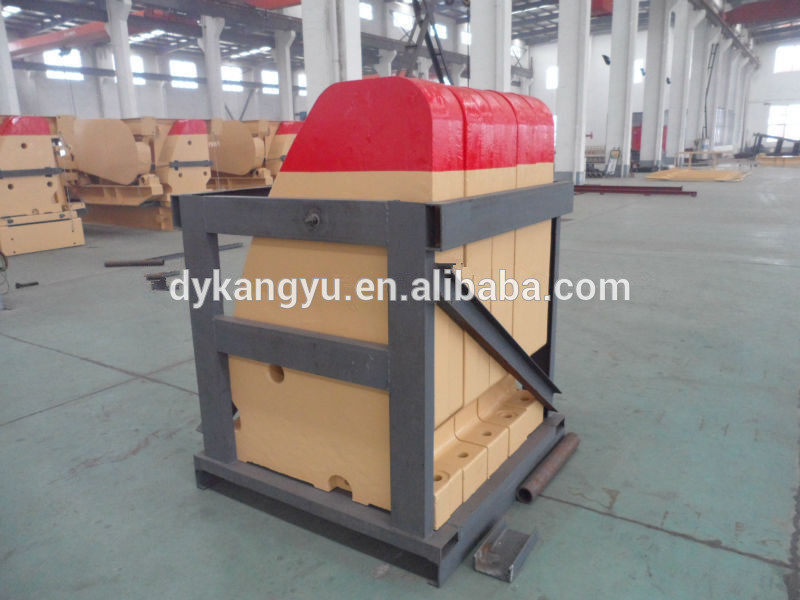

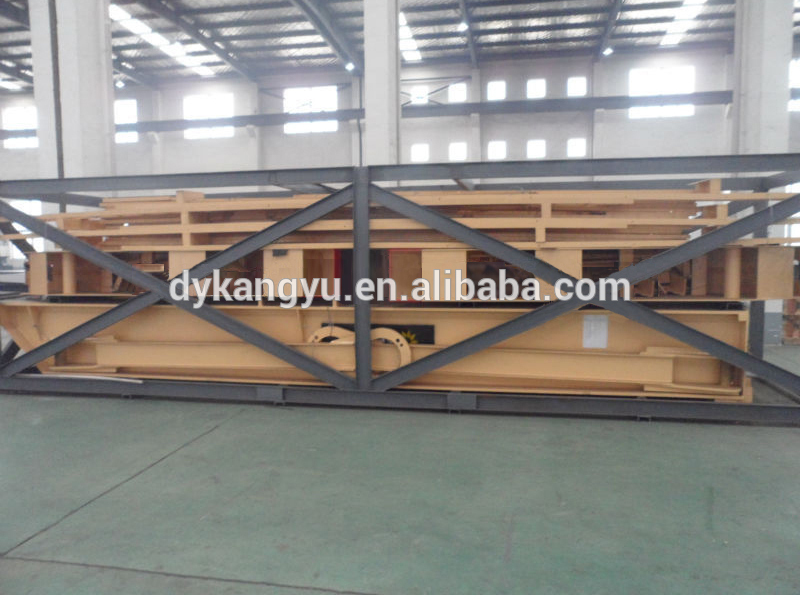

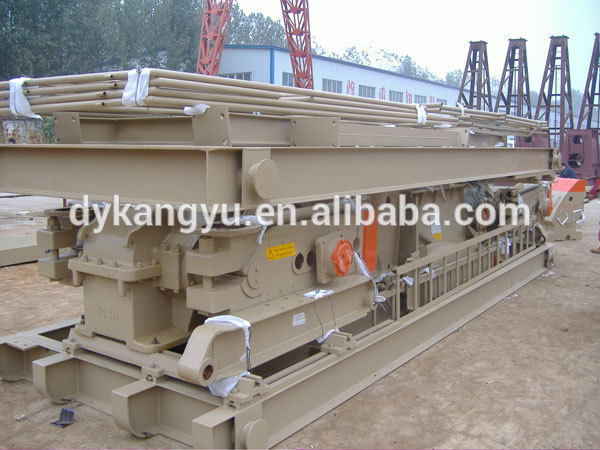

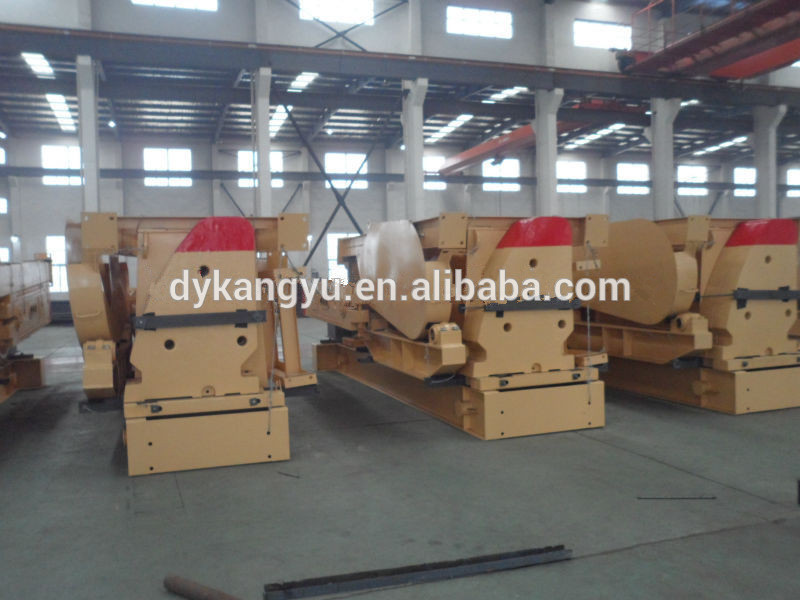

Pumping unit packing:
